When the beltmust stop,it stops.
Armaco Engineering supplies the safety switches, emergency stop devices and control stations that protect conveyor installations across South African mining and heavy industry. High quality, on-time delivery, competitive pricing — when we commit, we deliver.
SIL
3 CAPABLE
IP
66 / 67 / 69K
STD
AS4024 · IEC 60947
The line, protected
Five ways a conveyor fails.
Each device watches for one specific failure. When it sees it, the belt stops — every time, without a person in the loop.
The range
- 01
Protective Stop Devices

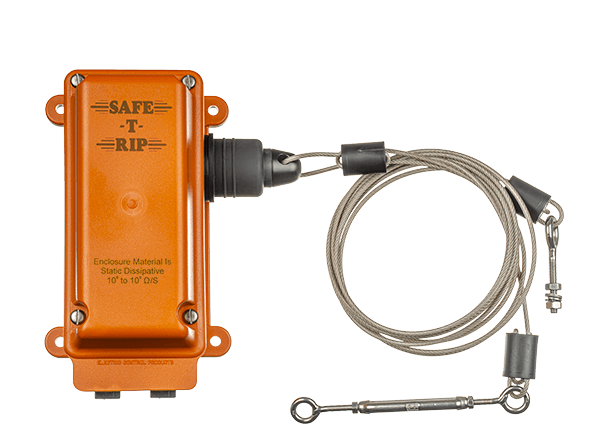

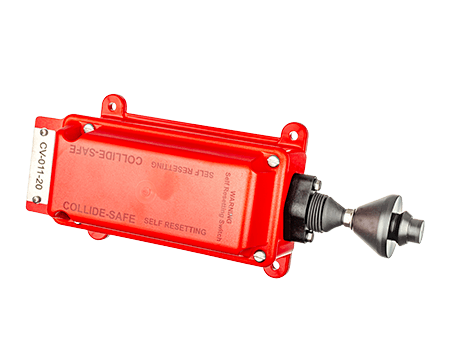

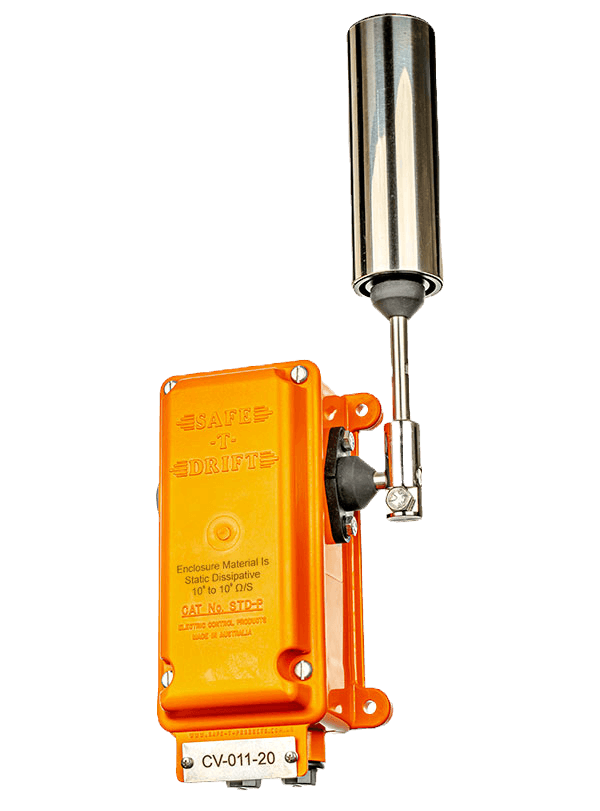

Belt rip, belt drift and pre-collision detection. Devices that catch a fault before it becomes a failure.
3 devices - 02

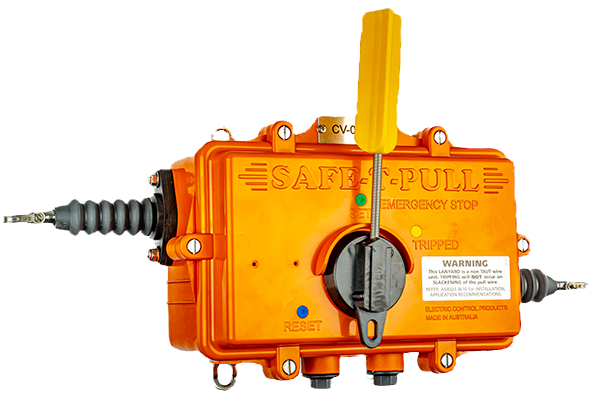

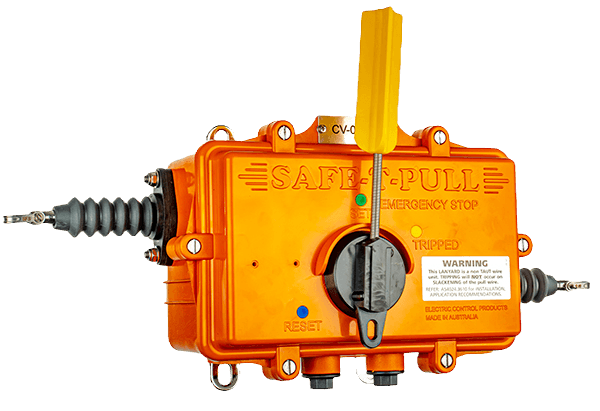

Emergency Stop Devices
Pull-cord lanyard devices with positive trip mechanisms — the last line between an operator and a moving belt.
2 devices - 03

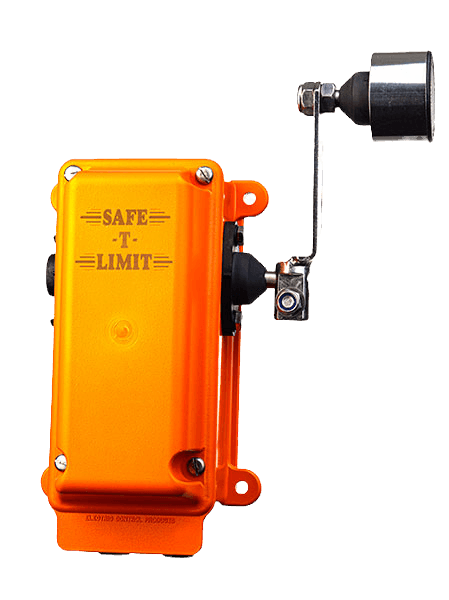

Safe-T-Limit
Heavy-duty limit switching with independently adjustable pre-warn and trip contacts, plus the full arm range.
3 devices - 04

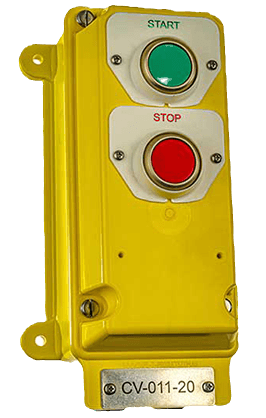

Control Stations
Ø22 push button stations, mini stations and hold-to-run belt drift stations rated to IP66/67 and IP69K.
3 devices - 05
Cord, Guides & Hardware
Vectran and stainless lanyards, pull-cord guides, stop balls and the stainless hardware that ties a system together.
3 devices
Capability
Certified, not claimed.
Every device we supply carries independent test evidence behind it. That is what makes it defensible in your engineering file — and in an incident investigation.
0+
Years of combined field experience
0
Device families in the core range
IP0K
Highest ingress rating supplied
SIL 0
Functional safety capability
- SIL 3
SIL 3 Capable
Devices independently FMEA tested by an accredited authority — real-world failure rate data, not theoretical assessment.
- ISO 9001
ISO 9001:2015
Manufactured under a certified quality management system with full traceability on every device.
- IP69K
IP66 / 67 / 69K
Sealed against dust ingress, immersion and high-pressure washdown across the enclosure range.
- AS4024
AS4024 · IEC 60947
Tested to AS4024 Safety of Machinery, AS/NZS 3947.5.5 and IEC 60947.5.5 with direct opening action contacts.
- RoHS
RoHS & REACH
Full compliance declaration on materials — no restricted substances in any supplied device.
Specification
The enclosure decides the lifetime.
Every material in the range has been researched and field tested before it goes near a device. Pick the environment — we will pick the enclosure.
01 / 04
PC/PBT Plastic
The standard enclosure across the range. Impact-modified polycarbonate/PBT blend that stays dimensionally stable under UV and shrugs off the knocks of a working plant. Static dissipation grades are available for installation in explosive atmosphere zones.
- Impact-modified for plant environments
- UV stable — no chalking in African sun
- Flame retardant V0 rated
- Static dissipation grades for Ex. zones
Where we work
- 01
Underground & Opencast Mining
Coal, platinum, chrome, gold and manganese. Overland conveyors, shaft feeds and transfer towers.
- 02
Quarrying & Aggregates
Crusher feeds, screening plants and stockpile conveyors running in constant dust and vibration.
- 03
Cement & Minerals Processing
High-temperature, high-abrasion lines where a drift fault becomes a shutdown within minutes.
- 04
Ports, Bulk Handling & Rail
Ship loaders, tipplers and reclaimers where 316 stainless is the only enclosure that survives.
- 05
Agriculture & Food Processing
Washdown environments requiring IP69K-rated control stations and food-safe enclosure materials.
- 06
Power Generation
Coal handling plants where belt rip and misalignment protection is a licence-to-operate condition.
How we work
Four steps. No surprises.
Most of our clients arrive with a fault, not a part number. That is the right way round.
- 01
Specify
Send us the belt, the environment and the fault you need detected. We come back with the exact device, enclosure material, contact configuration and part codes — not a catalogue.
- 02
Quote
A line-itemised quotation with lead times against every code. No negotiated supplier pricing games — one honest number, held.
- 03
Supply
Stock lines dispatched from Potchefstroom. Project quantities scheduled against your shutdown window so nothing lands late.
- 04
Support
Installation instructions, design drawings, technical documents and spares. The relationship starts at delivery, it does not end there.

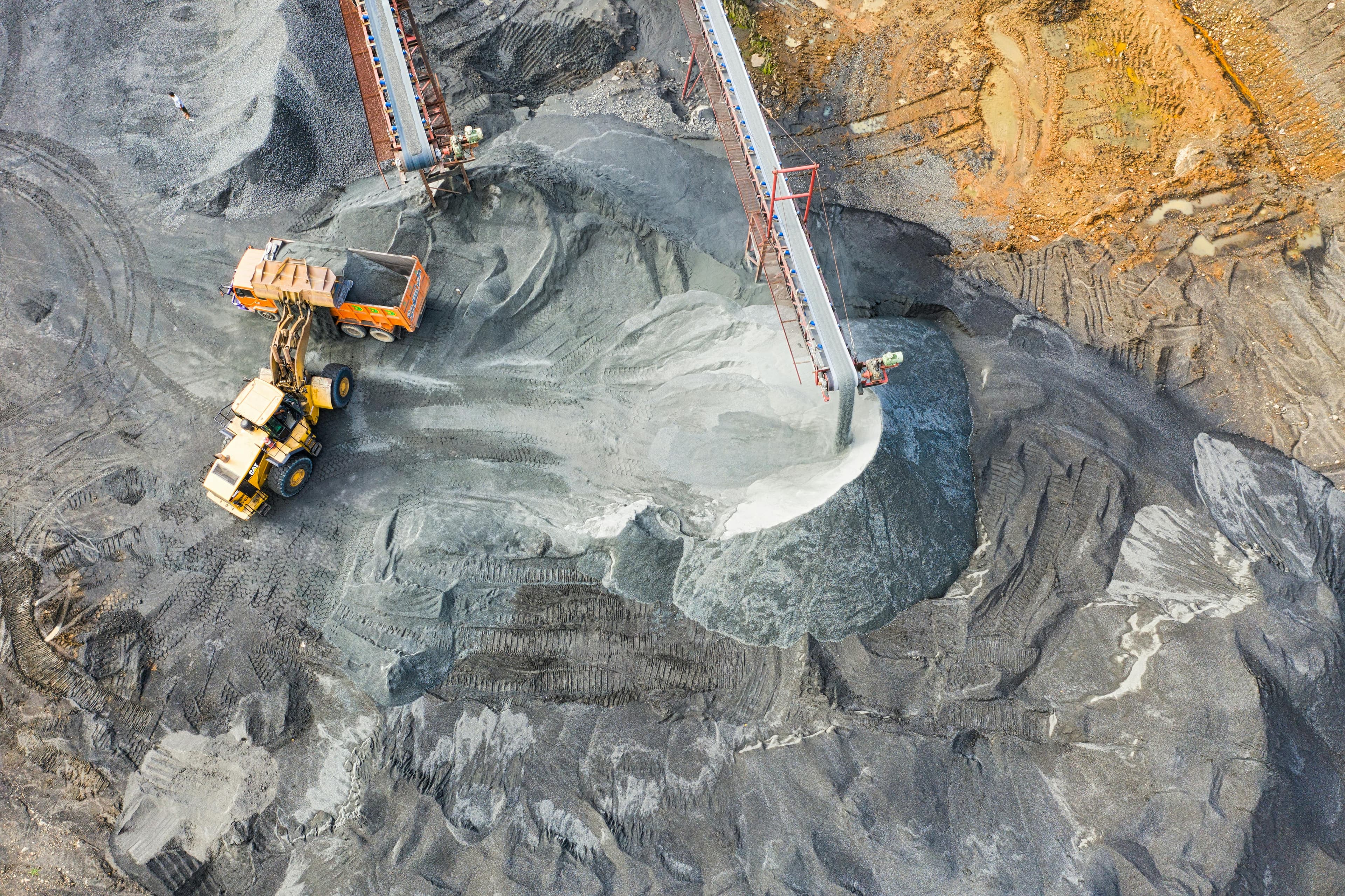

Where our devices work
Overland conveyors, transfer towers and stockpile lines across South Africa and the SADC region.
About Armaco
Armaco Engineering is a privately owned company dedicated to providing industries with cost-effective, high-quality products and exceptional service.
We serve the mining sector, but also cater to a variety of other industries. Our core product lines are safety switches and related equipment for conveyor belt installations — and we also supply KIMDEN lights and Yaskawa limit switches.
We are excited to partner with you. Our promise is clear: high quality, on-time delivery and competitive pricing — because when we commit, we deliver.
High Quality
On-Time Delivery
Competitive Pricing
Lines we represent
- Safe-T-Products
- KIMDEN
- Yaskawa
Before you ask
The questions we get most.
Yes. We regularly supply into the SADC region and can quote delivered pricing to site. Send your delivery address with the enquiry and we will include freight in the quotation.
In most cases, yes. The Safe-T-Pull range includes direct replacements for common competitor lanyard devices, and mounting adaptations can be engineered. Send us a photograph and the existing part number.
Stock lines dispatch immediately. Configured devices — specific contact counts, stainless enclosures, custom arm lengths — are quoted with a firm lead time against each line item, and we schedule to your shutdown date.
Yes. Ex. rated variants are supplied in 2mm 316 electro-polished stainless steel, and static dissipation polymer devices are available for installation in explosive atmosphere zones.
Every device has a technical document, brochure and design drawing available. Ask for them with your quote and we will send the full pack for your engineering file.
Each device underwent an independent Failure Modes and Effects Analysis with real-world testing by an accredited authority, rather than a theoretical or documentation-only assessment. That gives you defensible failure rate data for your overall SIL calculation.
Get a quote today
Line-itemised quotation with lead times against every code. Usually back with you the same working day.
